Revel in-ceiling loudspeakers draw upon the same research, resources, and unique perspectives that put all our loudspeakers in a class by themselves. Each model offers a standard-setting low sonic coloration and freedom from distortion over a wide dynamic range.
描述：

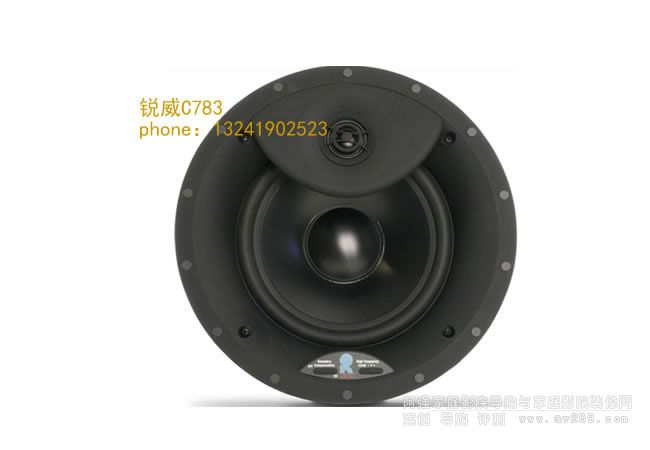

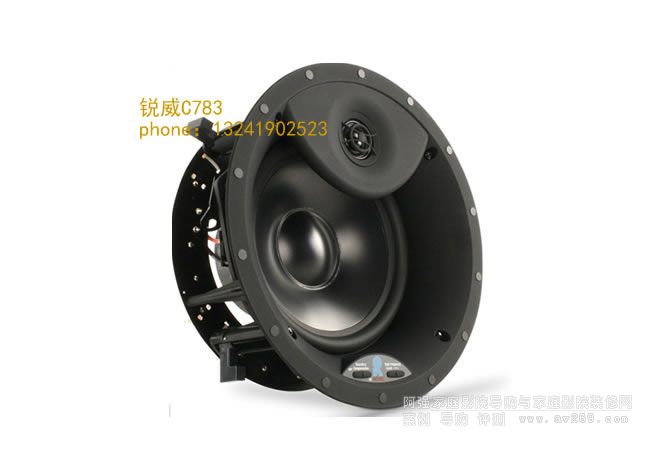

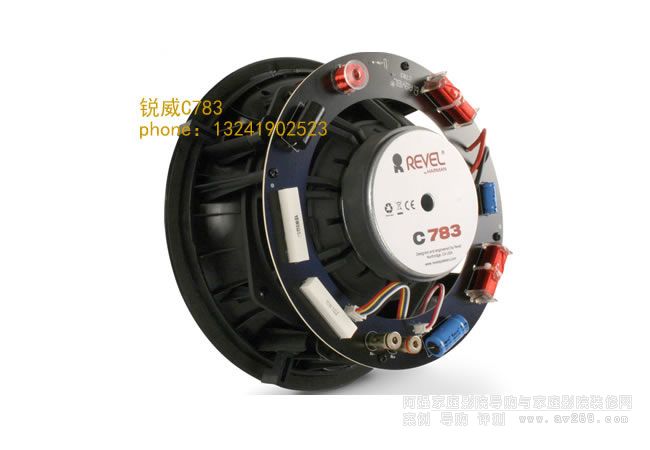

8" In-Ceiling Loudspeaker
特征：
Includes both round and square zero-bezel magnetic grilles • Round grille finished dimension (dia.): 10.7" (27.2 cm)
高頻驅(qū)動組件：
1" aluminum dome swiveling high-output tweeter with waveguide
低頻延伸：
High Frequency Extension: 3-position HF level control / Low Frequency Extension: LF boundary compensation
低頻驅(qū)動組件：
8" Micro-Ceramic Composite (MCC) Cone, Cast-Aluminum Frame High-Output Woofer
安裝：
C-2 fastening mechanism • Compatible with wall material thickness range: 0.5" – 2.0" (1.3 cm – 5.0 cm)
重量：
Weight: 3.1 lb (1.4 kg) / Shipping weight: 4.1 lb (1.9 kg)
深度：
Mounting depth: 5.2" (13.2 cm)
寬度：
Square grille finished Width: 10.7" (27.2 cm)
高度：
Cutout dimensions (dia.): 9.6" (24.4 cm) Square grille finished Height: 10.7" (27.2 cm)
