三種用途：分布式系統（走廊，客廳......），立體聲系統（臥室，廚房......）和家庭影院系統（專用房間或起居室）。 該產品適用于家中的每個房間，即使在潮濕的環境中，如浴室。 它可以用于墻內或天花板。這款同軸揚聲器采用新型鋁制倒置式可調高音揚聲器，更加緊湊，改善了聲音的分散性。 它還配備了一個新的Polyglass錐體（51/8“ - 13厘米）。 新的分頻器改善了離軸聆聽并避免了“淋浴效應”。
該產品可以安裝在任何地方，由于設計緊湊，揚聲器驅動器的籃子和底盤被重新設計為單件，還有方形和圓形磁性前格柵，無框架。
100系列產品線可輕松為您的家?guī)硪庀氩坏降囊魳沸Ч?讓您自己對這款產品背后的技術感到驚訝，這是一款高效的設計和理想的功
Key Points
• Product designed and developed in France by Focal
• Compact product with shallow mounting depth
• For in-ceiling or in-wall loudspeakers (1 product, 2 uses)
• Possible to connect two loudspeakers to the same amplifier output
• Ready-to-paint grille

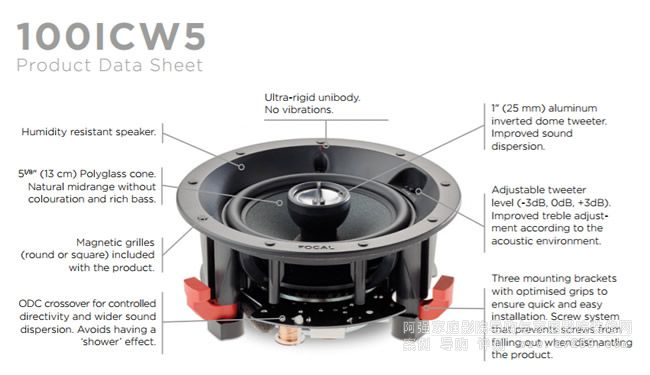

Technical Specifications 51/8" (13 cm) Polyglass cone. Natural midrange without colouration and rich bass. Humidity resistant speaker. ODC crossover for controlled directivity and wider sound dispersion. Avoids having a ‘shower’ effect. Adjustable tweeter level (-3dB, 0dB, +3dB). Improved treble adjustment according to the acoustic environment. Three mounting brackets with optimised grips to ensure quick and easy installation. Screw system that prevents screws from falling out when dismantling the product. Ultra-rigid unibody. No vibrations. 1" (25 mm) aluminum inverted dome tweeter. Improved sound dispersion. Magnetic grilles (round or square) included with the product. Type in-wall/In-celling - 2-way coaxial Drivers 5" (13cm) Polyglass Midbass. 1" (25mm) AI inverted dome Tweeter Sensitivity (2.83V/1m) 88dB Frequency response (+/-3dB) 65Hz-23kHz Low frequency point (-6dB) 56Hz Nominal impedance 8Ώ Minimal impedance 7,3Ώ Recommended amplifier power 15-100W External dimensions (Ø/Depth) 71/4"x327/64" (184x87mm) Cut-Out diameter 619/64" (160mm) Depth from wall 315/64" (82mm) Net weight (with front grille) 3.19lbs (1.45kg) Packing dimensions (WxDxH) 95/8" x 95/8" x 65/16" (245x245x161mm) Total weight (with packaging) 4.52lbs (2.05kg)
