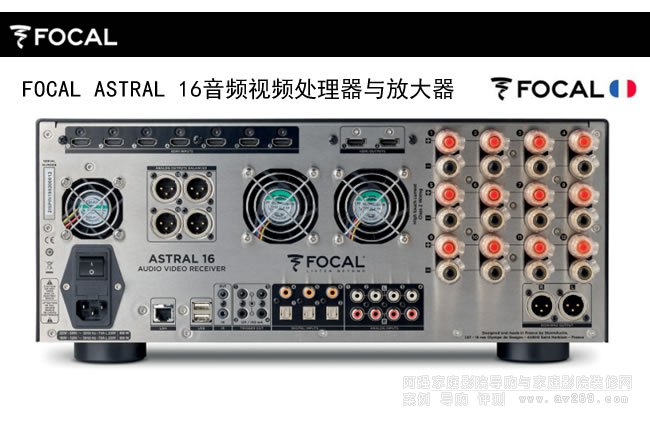

勁浪功放 FOCAS ASTRAL 16音頻視頻處理器與放大器
真正的指揮家能夠讓他的交響樂隊發揮出最佳水平，Astral 16也是如此。它可以在一個令人驚艷的家庭影院裝置中完美協調各個部分，讓讓高保真和壁式/天花板音響呈天花板音響呈現出最佳效果。
Astral 16整合了一個D級Pascal Audio放大器，擁有16個頻道，其中12個具有放大功能，另外4個為前置放大均衡XLR輸出），而且這些頻道完全用于表現音頻（過濾、均衡、低音管理等）。
如此堅實的底蘊足以帶來無可比擬的畫質和音質，正式帶您踏上沉浸式體驗的旅程（支持的取樣頻率最高可達192kHz）
所有音頻格式
Astral 16能覆蓋所有音頻格式：Dolby Atmos®，DTS:X™，Auro-3D®等。
Astral 16擁有可基于房間特點（通過Dirac Live®進行房間校準）進行調整的技術，而且還提供一個經過校準的測量傳聲器。您可以對Astral 16進行微調，使其適應所有可能的聲音環境和需求。
兼容性
與Control4，Crestron，Savant和RTI 兼容
領先的交互界面系統帶來的多種可能性使得Astral 16錦上添花，能夠?qū)δ械囊纛l和視頻需求實現完美的無縫遙控
ASTRAL 16
Product Data Sheet
Type 16 channel audio-video processor and amplifier
Main features Compatible formats Dolby Atmos® / DTS:X™ / Auro-3D®
Room Calibration Powered by Dirac Live® : target curve editable from 20Hz
to 20kHz for all channels (including subwoofers), phase
correction full bandwidth 20Hz-20kHz on all channels
(including subwoofers)
"Remote Monitoring" fonction
Multichannel /
Surround Processing
Output channels
Decoding / upmixing channels
Input sampling rate supported
Stereo downmix
Bass management
Multi-subwoofer channels
Multi-way crossover
20 Parametric EQ per channel
16
up to 16 channels
up to 192kHz
fully flexible
Unlimited
(6-12-18-24-36-48dB/oct filter slopes)
HDMI HDMI inputs
HDMI outputs (mirror)
Supported video format
High Dynamic Range
Color Space and Subsampling
Deep Color
Max resolution supported
HDMI
7: HDMI 2.0 / HDCP 2.2
1: HDMI 2.0 / HDCP 2.2 (with eARC)
2: HDMI 2.0 / HDCP 2.2
Up to 4K UHD
HDR10 / HLG
4:4:4, 4:2:2, 4:2:0
12 bpc
4K 60fps 4:4:4 8bpc
3D / 4K / eARC
Audio Inputs Digital input
Analog stereo inputs
3 x coaxial, 3 x optical
4 x RCA inputs
Amplified Audio Outputs Amplified main outputs
Analog main outputs, balanced
Stereo downmix outputs, balanced
Technology
Amplified channels
Continuous power output, per channel, à 0.1%THD
3 channels driven simultaneous,
6 channels driven simultaneous,
12 channels driven simultaneous
Continuous power output, per channel, à 1%THD
3 channels driven simultaneous,
6 channels driven simultaneous,
12 channels driven simultaneous,
SNR (P-rated)
THD (from 1W to P-rated -1dB)
12
4 x XLR
2 x XLR
Class D
12
8Ω / 4Ω / 2.7Ω
200W / 400W / 650W
200W / 350W / 350W
200W / 300W
8Ω / 4Ω / 2.7Ω
250W / 500W / 725W
250W / 500W / 500W
250W / 300W
110dB
<0,03%
Set-Up Management Configurable multi-theater management
Configurable audio zones management
Unlimited Theater and audio zones listening presets
Backup and restore of set-up
Firmware update via USB/network
Control Inputs / Outputs USB type A
Ethernet
Output trigger control
IR remote ports, in/out
2
4 (out)
1 / 1
Control / Custom
Installation
Web-based product configurator
TCP/IP API based control
Focal Remote iPad control application
Home automation
Front panel display
Crestron, Control4, Savant, RTI home automation
TFT 4,3"
Power Supply Voltage range
Type
Range selection
100V to 240V
SMPS
Universal
Supplied with Calibrated measurement microphone and tripod, Dirac
Live license, 32.9ft (10m) cable with infra-red captor,
mounting kit.
Dimensions & weight Net weight – with stands (kg/lbs)
Net weight – with accessories for Rack (kg/lbs)
Dimensions with stands (h x w x d) (cm/inches)
20,0 / 44.1
23,0 / 50.7
19,10 x 47,90 x 49 / 7.52 x 18.86 x 19.29
