定制安裝特性:
• 驅動2 區無源揚聲器,配備2 區音頻信號輸出接口,實現多房間分布式音頻播放(主區+2 區);
• 雙向以太網和RS232 控制端口;
• 2 區獨立音調控制(低音/高音);
• 2 區數模轉換芯片支持SPDIF (PCM)信號、網絡及USB 音源信號;
• 主區及2 區最大音量及開機音量設定;
• 經銷商設置記憶存儲及重新加載功能,可鎖定(PC 端軟件支持);
• IR 通道2 進1 出;
• 3 個可編程的12V 觸發器(配合可調整的延遲處理);
• 可選配機架安裝套件(IRK-155-3D)
• RIHD(HDMI 遠程交互)系統控制*;
* 兼容性取決于特定型號
高級特性:
• 支持DTS:XTM及Dolby Atmos®(杜比全景聲®)兩種全新多維度環繞聲格式(5.1.2 聲道規格);
• 兼容4K/60Hz 視頻的HDMI® 接口支持高動態范圍格式(HDR)以及4:4:4色彩空間、BT.2020 標準、HDCP 2.2 協議,充分享受次世代UltraHD 娛樂體驗
• 6組HDMI 輸入接口 1 組HDMI 輸出接口;
• 無線傳輸方面,支持Google CastTM,AirPlay,Wi-Fi®,以及4.1 版本藍牙(支持協議包括A2DP 1.2 版,AVRCP1.3 版);
• 網絡電臺及音樂串流訂閱服務包括TuneIn Radio,Pandora®,Spotify,TIDAL*1);
• 全新FireConnectTM 無線多房間音頻傳輸技術(需要相應的有源揚聲器支持);
• AccuEQ 房間聲學校準技術搭載AccuReflex 相位校準程序,為基于聲音對象的音頻格式帶來逼真的還原效果(附送檢測麥克風);
• 32-bit 數字信號處理引擎;
• 分立式輸出電路;
• 手工嚴選歷經精心調音的定制部件,確保帶來低阻抗大電流的優秀品質;
• VLSCTM 技術進一步消除數字信號底噪;
• S/PDIF 接口具備PLL 時基誤差糾正電路;
• HDMI 通道下帶有懸浮式屏幕顯示(OSD)可進行快速設置和切換到主菜單;
• 前置聲道具備Bi-Amping 雙功放能力;
其它特性:
• 80 W/聲道 (8Ω, 20 Hz–20 kHz,0.08% THD, 雙聲道驅動,FTC);
• 采用H.C.P.S.大容量高輸出變壓器;
• 為大容量USB 設備提供音頻播放功能;
• CinemaFILTERTM技術能夠?yàn)殡娪耙糗墡碛霸杭壱粽{(diào)平衡效果;
• 每個聲道都可以獨立進行分頻點調整(40/45/50/55/60/70/80/90/100/110/120/130/150/200Hz)
• A/V 同步控制(48 kHz 采樣率下1ms 步進,-100ms~+500ms區間);
• 7.2 聲道前置輸出接口;
• 前置左右聲道可進行音調控制(低音/高音);
• 40 個FM/AM 及40 個網絡電臺預設;
• 通過以太網和USB 進行固件更新;
AMPLIFIER: | |
# Channels | 7.2 |
POWER (8 Ω 20-20kHz 0.08%) / CH | 80 |
Amplifier Frequency Response | 5Hz - 100kHz |
Wide Range, High Current Power Supply | Natural Harmonics Technology, Massive High-Power Transformer |
High Instanteneous Current Capability | 25 Amps, 1kHz, 00.1 Ω Pulse |
THX Certified | |
Continuous 6 Ω Rated | ✓ |
Low Impedance Drive- Certified 4 Ω | |
Hand Selected Parts to Ensure Low Impedance Performance | Custom- Audio Tuned |
Discrete Output Stages for All Channels | Discrete 2-Stage |
All Channels Equal Power Output | ✓ |
PUSH-PULL Amplifier Design | ✓ |
Independent Power Supply | 2 |
Bi-amp Capability - Front L/R Channels | ✓ |
PROCESSING: | |
Dolby Atmos and Dolby Surround | ✓ |
Dolby TrueHD | ✓ |
DTS:X and DTS Neural:X | ✓ (Future Firmware Update) |
DTS-HD Master Audio | ✓ |
THX Processing Modes & Loudness Plus | |
VLSC for Noise Free Signal Path | ✓ (Front Left / Right Channels) |
AccuEQ Automatic Room Calibration | Advanced w/AccuReflex |
GAME Surround Modes (Rock, Action, Sports, Role Play) | ✓ |
Advanced Music Optimizer to Enhance Compressed Audio Files | ✓ |
Premium Quality Digital-to-Analog Conversion | 384k / 32-bit AKM 4458 |
32-Bit DSP Chip for Advanced Processing | ✓ |
Ultra-Low-Jitter Circuitry to Improve Audio | ✓ |
Adjustable Crossover by Channel Pair | 40/45/50/55/60/70/80/90 100/110/120/130/150/180/200 Hz |
Accurate Speaker Distance Setting | 0.1 - foot |
A/V Sync Delay (by Source) | -100 to +500 ms |

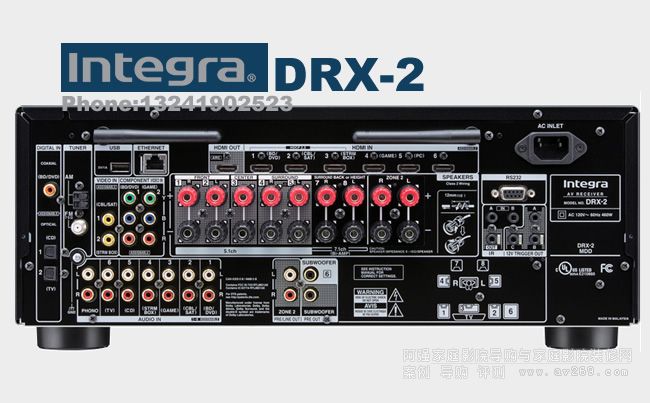

CONNECTIVITY: | |
HDMI Inputs / Output(s) | 6 / 1 |
HDMI 4K / 60 Hz- Capable HDMI Terminals | with HDR Support |
HDCP 2.2 Copy-Protection Compatibility | ✓ |
HDMI Support for High Dynamic Range (HDR) | ✓ |
HDMI Support for BT.2020 | ✓ |
4K / 60 Hz 4:4:4 Colorspace Support | ✓ |
HDMI Support for 3D, Audio Return Channel and CEC | ✓ |
HDMI Support for Deep Color, x.v.Color, LipSync | ✓ |
HDMI Support for DVD-Audio, SACD, Multichannel PCM | ✓ |
Front Panel HDMI Input | |
HDBaseT Output | |
Analog to HDMI Upconversion | From 480i / 576i |
4K Upscaling from 1080p | via HDMI |
Component Video Inputs | 2 |
Composite Video Inputs | 3 |
Digital Audio Inputs (COAX / OPT) | 1 / 2 |
Analog Audio Inputs | 8 |
Phono Input | ✓ |
Front Panel A/V Input | ✓ |
Analog Pre-outs | 0.2 |
NETWORK / USB: | |
FireConnect Wireless Mult-Room Audio Streaming Technlogy | ✓ (Future Firmware Update) |
Supports Integra Remote Apps for iPod / iPhone and Android-Powered Devices | ✓ |
Apple Airplay | ✓ |
iPod / iPhone / iPad Ready | ✓ |
Google Cast for Audio | ✓ |
Home Network Music Streaming | ✓ |
TIDAL High Fidelity Music Streaming | ✓ (Future Firmware Update) |
Pandora | ✓ |
Spotify | ✓ |
Spotify Connect | ✓ |
TuneIn Radio | ✓ |
MQA (Master Quality Authenticated) Support | ✓ (Future Firmware Update) |
DSD Support (2.8, 5.6, 11.2 MHz) | ✓ |
Dolby TrueHD Support | ✓ |
Apple Losless (ALAC) Support | ✓ |
WAV Support | ✓ |
AIFF Support | ✓ |
Apple Lossless Support | ✓ |
DSDIFF Support | ✓ |
FLAC Support | ✓ |
MP3 Support | ✓ |
USB Input for Streaming Audio | ✓ |
WiFi Certified | IEEE 802.11 a/b/g/n 5 Ghz / 2.4 Ghz |
Bluetooth | Built-in |
Firmware Updates via Network and USB | ✓ |
Firmware Update Notification | ✓ |
MULTIZONE: | |
Powered Zone 2 | ✓ |
Powered Zone 2 A / B | |
Powered Zone 3 | |
Fixed or Variable Zone 2 Line Out | ✓ |
Fixed or Variable Zone 3 Line Out | |
Zone 2 Video Output | |
Zone 2 OSD | |
Zone 2 Audio DAC | NET, USB |
Zone 3 Audio DAC | |
Whole House Mode | |
INTEGRATION ACCESS: | |
Bi-directional RS-232 Control Port | ✓ |
Bi-directional Ethernet Control Port | ✓ |
Rear Panel IR Input / Output | 2 / 1 |
RIHD (Remote Interactive over HDMI) | ✓ |
12V Trigger (with Adjustable delay) | x3, Assignable |
MISCELLANEOUS: | |
GUI for Setup Menu | ✓ (Advanced HD) |
Quick Setup Menu | ✓ |
Input Name Edit | Fully Customizable |
HDMI Standby "Through" Mode | Assignable |
Dealer Settings Memory Store & Recall Function | ✓ |
Screensaver Function | ✓ (Advanced) |
Hybrid Standby to Reduce Power Consumption | ✓ |
Smart Grid Ready | ✓ |
Anti-Resonant Aluminum Front Panel | ✓ |
Gold-Plated RCA Terminals | ✓ |
Oversized Detachable AC Cord | ✓ |
