產品報格參考/臺￥16800.00
Bowers&Wilkins CCM7.5 S2斜面吸頂音箱
驅動單元
1 個 ø25 毫米（1 英寸）鉆石圓頂，鸚鵡螺™管式高音揚聲器
1 個直徑 180 毫米（7 英寸）的 Continuum 錐形低音/中音驅動器，帶抗諧振插頭
Technical Specifications
Technical features Carbon Dome tweeter
Continuum mid/bass
Description 2-way in-ceiling system
Drive units 1x ø25mm (1in) Carbon Dome high-frequency
1x ø180mm (7in) Continuum cone mid/bass
Frequency range (-6dB) -6dB at 25Hz - 33kHz
Frequency Response -3dB 32Hz - 28kHz ±3dB
Sensitivity 90dB spl (2.83Vrms, 1m)
Harmonic distortion 2nd and 3rd harmonics (90dB, 1m)
<1% 70Hz - 33kHz
<0.5% 100Hz - 28kHz
Nominal impedance 8Ω (minimum 4.8Ω)
Recommended amplifier power 25W - 150W into 8Ω on unclipped programme

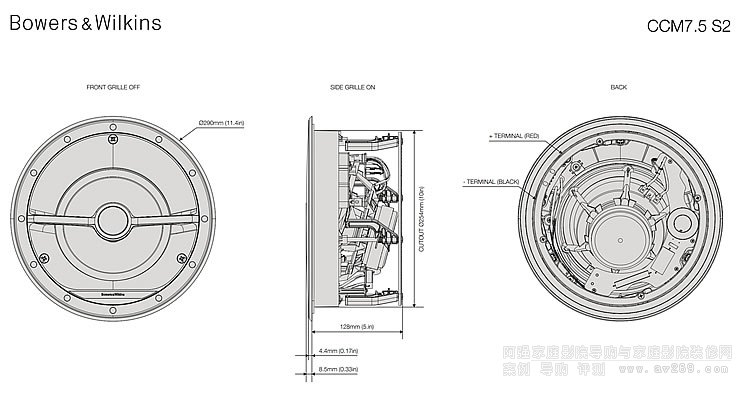

Frame diameter 290mm (11.4in)
Depth (behind surface) 128mm (5in)
Cut-out diameter 254mm (10in)
Protrusion 8.5mm (0.33in)
PMK PMK C8
Back box BB 6C
Square grille option GR68SQ
Net weight 3.1kg (6.83 lb)

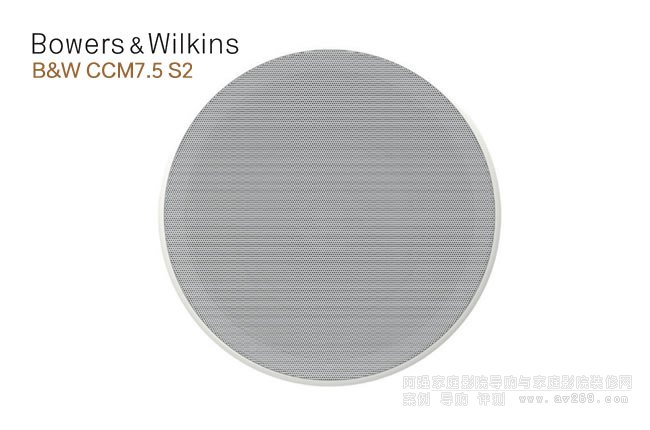

Finishes Grille: White
