產品報格參考/個￥34800.00

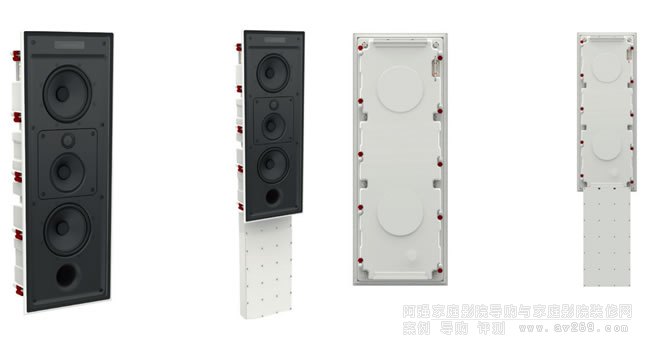

英國寶華B&W CWM7.3 S2定制嵌入音箱
三路入墻式揚聲器
1x ø25mm (1 in) CarbonDome 碳膜半球型高音
1x ø100mm (4 in) Continuum™音盆FST™中音
2x ø150mm (6 in) Aerofoil profile音盆低音
包括可選裝空間箱
Technical Specifications
Technical features Carbon Dome tweeter
Continuum cone FST midrange
Aerofoil profile bass cones
Flowport™
Description 3-way in-wall system
Drive units 1x ø25mm (1 in) Carbon Dome high-frequency
1x ø100mm (4 in) Continuum cone FST midrange
2x ø150mm (6 in) Aerofoil profile bass
Frequency range (-6dB) -6dB at 43Hz and 33kHz
Frequency Response -3dB 45Hz - 28kHz ±3dB
Sensitivity 90dB spl (2.83Vrms, 1m)
Harmonic distortion 2nd and 3rd harmonics (90dB, 1m)
<1% 80Hz - 33kHz
<0.5% 120Hz - 33kHz
Nominal impedance 8Ω (minimum 3.1Ω)
Recommended amplifier power 25W - 200W into 8Ω on unclipped programme

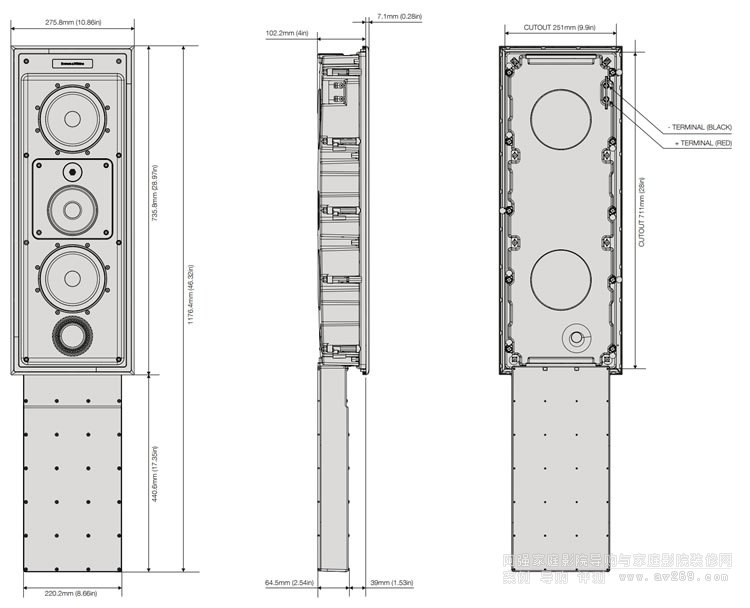

Frame height 736mm (29in)
Frame width 276mm (11in)
Depth (behind surface) 102mm (4.02in)
Cut-out height 711mm (28in)
Cut-out width 251mm (9.9in)
Cut-out height w/PMK 715mm (28.1in)
Cut-out width w/PMK 256mm (10.1in)
Reservoir box height 460mm (18.1in)
Reservoir box width 220mm (8.7in)
Protrusion 7mm (0.28in)
PMK 7.3W
Net weight 12.4kg (27.32lb)
Finishes Back box: White
